      Space Surface Pro (8-9) 13" (580SPSB) Update

      We have updated the revision on the Space Surface Pro (8-9) 13" (580SPSB)

      The updated revision will make this space enclosure fit the Surface Pro (8-9) 13”

      Reason for change:

      The update is done because the connection ports and power button etc are in different locations.  The revision to the enclosure is to open access to these functions making the enclosure good for the 8 & 9.

      • The updated revision is: C
      • The mark on the enclosure is : 580-C

      Side

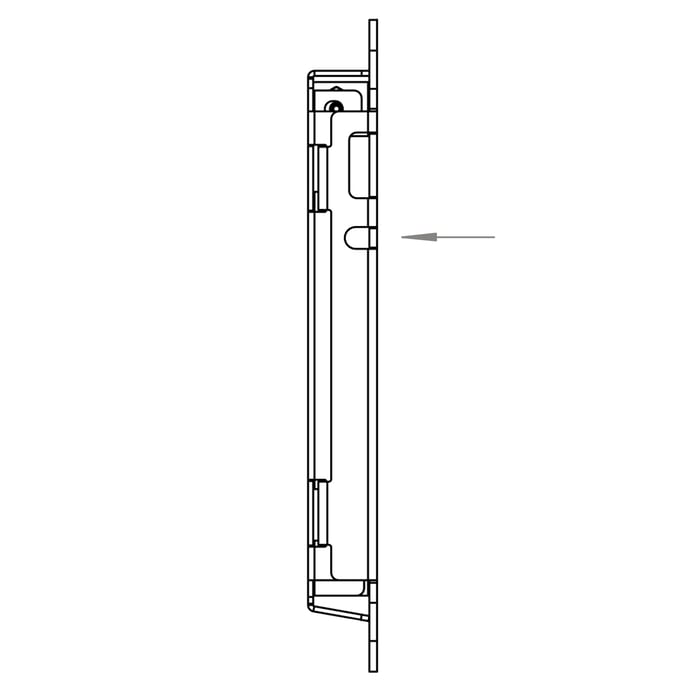

      REV A

      Space-Surface-Pro-8-9-Side-REV-A

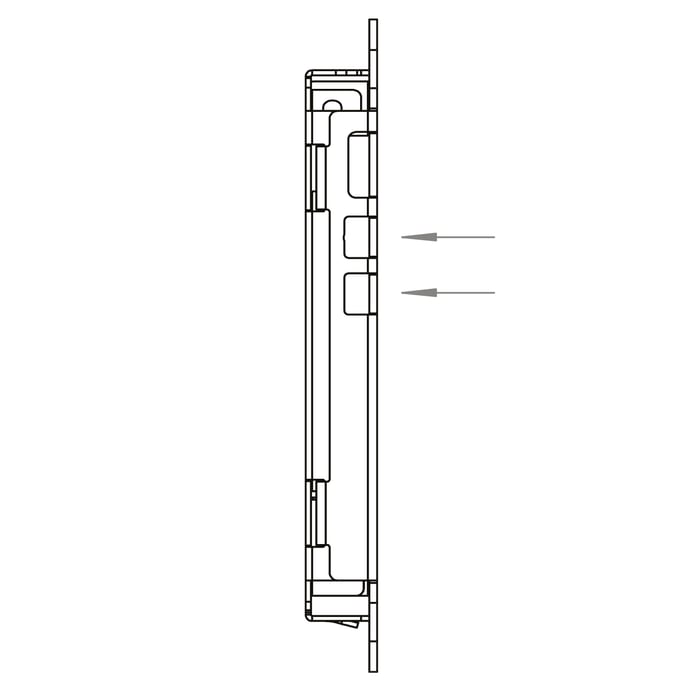

      REV C

      Space-Surface-Pro-8-9-Side-REV-C



      Additional bigger cutouts for USB-C ports

      MSP9-Side-6-1024x576

      Back

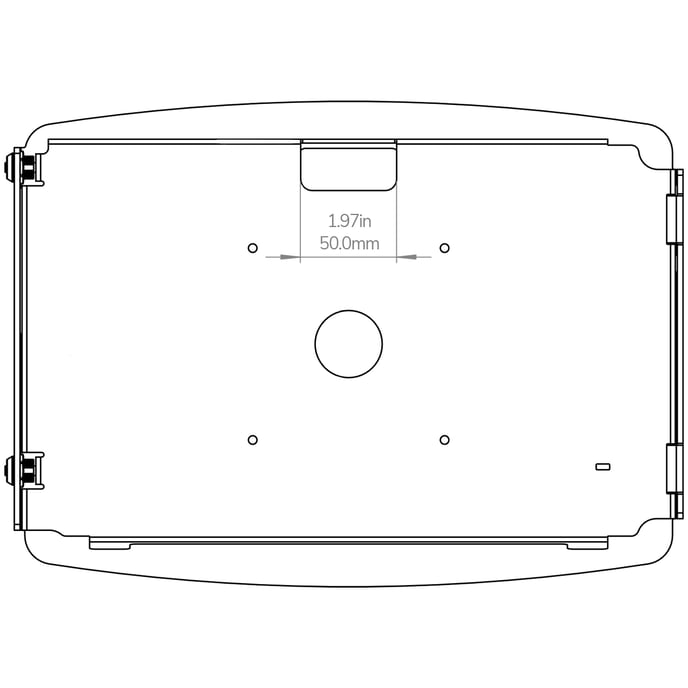

      REV A

      Space-Surface-Pro-8-9-Back-REV-A

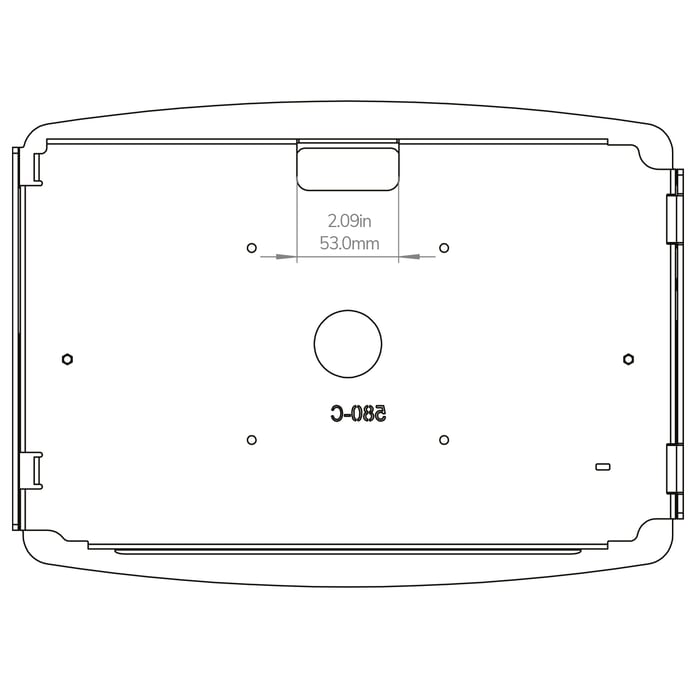

      REV C

      Space-Surface-Pro-8-9-Back-REV-C



      Bigger cutout for the back-facing camera

      Top

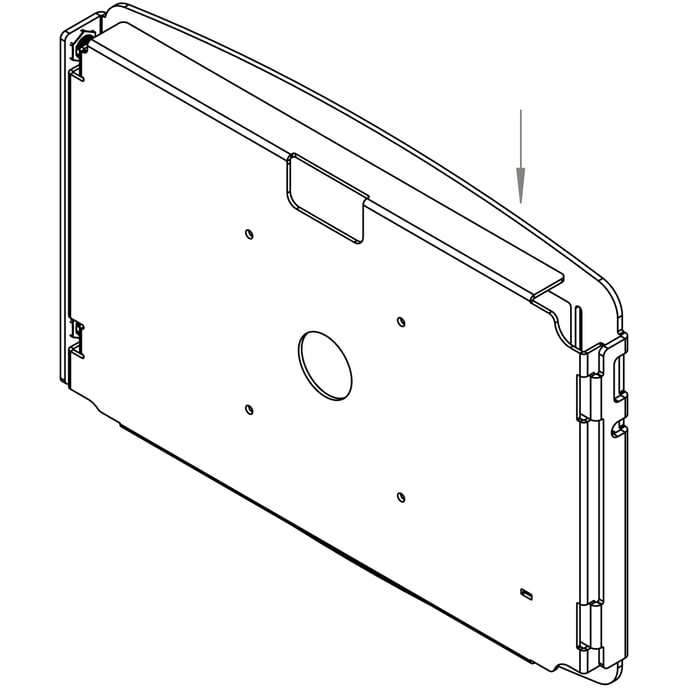

      REV A

      Space-Surface-Pro-8-9-Iso-Back-REV-A

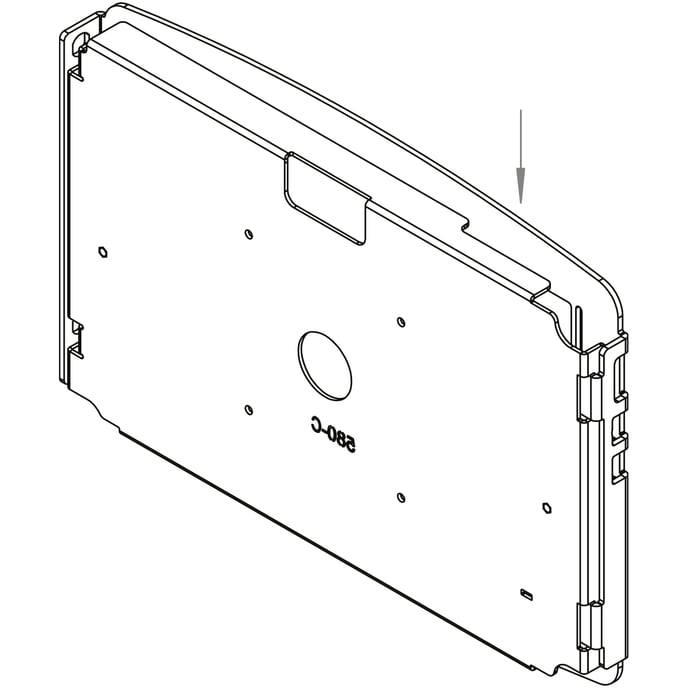

      REV C

      Space-Surface-Pro-8-9-Iso-Back-REV-C



      Additional cutout for the volume and power buttons

      MSP9-Side-5-1024x586
